| Place of Origin: | China |
| Brand Name: | Zhongke |
| Certification: | CE, ISO900 |
| Model Number: | ZK-760 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden pallet or wooden case |
| Delivery Time: | 1month after received 30% deposit |
| Payment Terms: | 30% deposit+70%balance before shipment |
| Power: | 380V 50Hz | Noise Level: | ≤80dB |
|---|---|---|---|
| Electrical Power: | 5 Kw | Air Supply: | 90L / Min |
| Net Weight: | 3900Kg | Machine Dimension: | L3.8xW1.9xH1.8m |
| High Light: | packaging box manufacturing machinery,sweet box manufacturing machine |
||

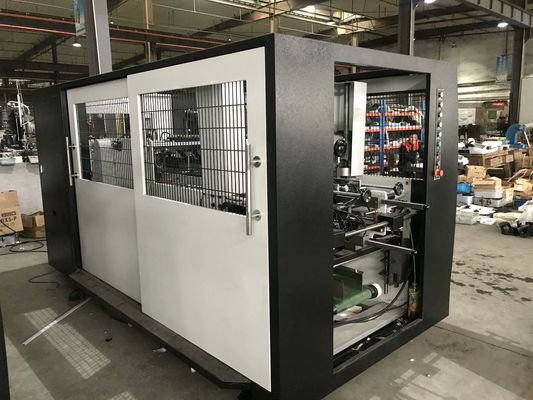

ZK-760 FULL AUTOMATIC RIGID BOX FOLDING MACHINE
Box folding machine/chocolate box packing machine/candy box forming machine/ cookie packaging machine/cosmetic box forming machine/without glue box former
Quick Detail:
Box folding machine
No mold, easy change for size
No glue, safe for food packaging
High speed
Small machine size, save space
1 year guarantee
Description:
Applications:
ZK-760 full automatic box folding machine is mainly applicable to 250-400g ivory board, white board paper and other cardboard packaging such as high-grade paper box for food, cosmetics, shirt, shoes, underwear, hardware, daily necessities and other industries.
Specifications:
|
Board size (A = width; B = length; M = flange) |
Aminsize | 196mm |
The thickness of the cardboard
|
White board paper | 250g-450g | |
| Amaxsize | 660mm |
ivory board
|
||||
| Bminsize | 266mm | Power | 380V 50Hz | |||
| Bmaxsize | 760mm | Noise level | ≤80dB | |||
| M value size | 13mm-18mm | |||||
|
Finished Box size
L = long; W=wide; H=high; |
Lminsize | 160mm | Speed/ (Pcs/h) | 1200-3300(Pcs/h) | ||
| Lmaxsize | 400mm | Cardboard pile height/ | 750mm | |||
| Wminsize | 90mm | Load-bearing of cardboard laydown platform | 60kg | |||
| Wmaxsize | 300mm | Electrical power/ | 5kw | |||
| Hminsize | 300g-450g:20mm | Air supply/ | 90L/min | |||
| 250g-300g:25mm | ||||||
| Hmaxsize | L:160-215mm 50mm | Net weight/ | 3900Kg | |||
|
L>215mm 70mm |
Machine Dimension/ | L3.8xW1.9xH1.8m | ||||
Competitive Advantage:
High-speed separation and conveying of paper board. (Automatic paper feeding unit)
Combine side width with non-side width of box in newly developed folding system, high speed conveying in steady condition. (Folding unit)
Adjustable forming mould design, adjusting specifications without mould replacement, increase efficiency and cost savings. (Automatic forming unit)
Product general information
| Place of Origin: | CHINA |
| Brand Name: | ZHONGKE |
| Certification: | CE |
| Model Number: | ZK-760 |
Product business terms
| Minimum Order Quantity: | 1 |
| Price: | NEGOTIABLE |
| Packaging Details: | WOODEN PALLETS/CASE |
| Delivery Time: | ONE MONTH |
| Payment Terms: | TT/LC AT SIGHT |
| Supply Ability: | 100 SETS/YEAR |
