| Place of Origin: | China |
| Brand Name: | Zhongke |
| Certification: | CE, ISO900 |
| Model Number: | ZK-660FBS |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden pallet or wooden case |
| Delivery Time: | 1month after received 30% deposit |
| Payment Terms: | 30% deposit+70%balance before shipment |
| Supply Ability: | 10 sets per month |
| Name: | Paper Box Forming Machine | Feature: | Simple Operation |
|---|---|---|---|
| Operation System: | Human Machine Operation System | Speed: | 15-35pcs/min |
| Ear Folding: | 15-120mm | Precision Error: | ±0.05mm |
| Paper Pile Height: | 260mm | Function: | Troubleshooting Function |
| High Light: | automatic box maker,cardboard box manufacturing machine |
||

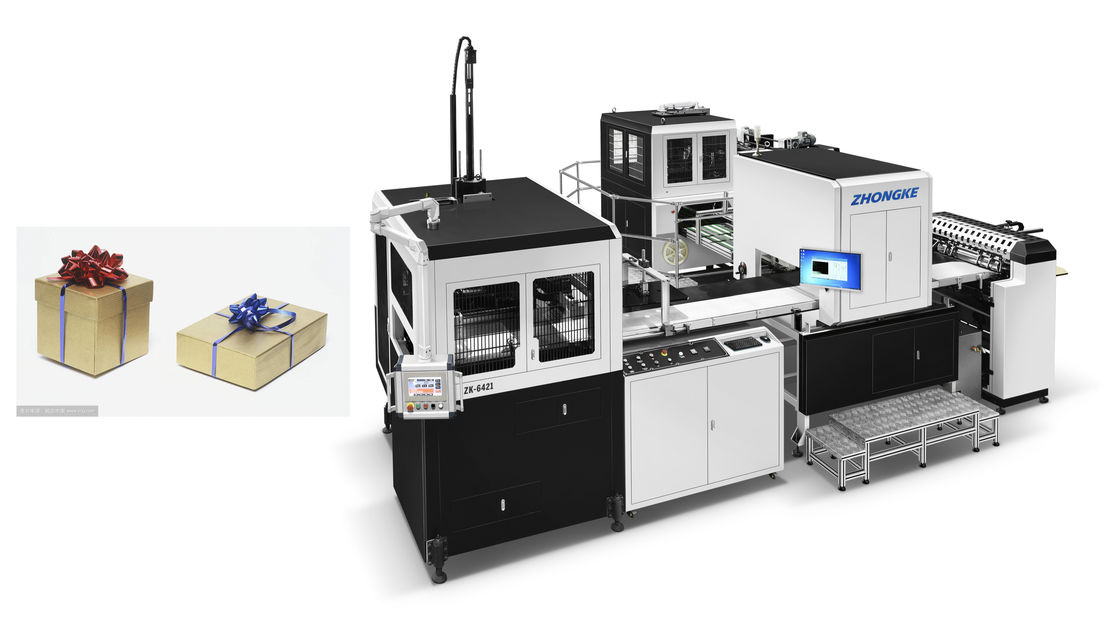

Simple Operation Paper Box Forming Machine With Human Machine Operation System
Paper Box Forming Machine Description:
Paper Box Forming Machine use machine hand to clip paper, feeding paper, separate paper, punching, discharge etc. This model can make different size of cake tray through changing mould. Simple structure, inverter, auto temperature controller, easy to operate, high efficient, stable running.
Paper Box Forming Machine configuration
Paper Box Forming Machine Specifications
| Simple Operation Paper Box Forming Machine With Human Machine Operation System | ||
| Box Size | ||
| L | max | 400mm |
| L | min | 85mm |
| W | max | 300mm |
| W | min | 60mm |
| H | max | 125mm |
| H | min | 12mm |
| Turn in depth | ||
| R | max | 100mm |
| R | min | 15mm |
| cover paper requirement | ||
| B | max | 660mm |
| B | min | 190mm |
| A | max | 560mm |
| A | min | 155mm |
|
paper wrap size g/m2 |
100g/m2－350g/m2 | |
|
Cardboard thickness mm |
0.8－3mm | |
| pcs/min | 15-35 | |
|
Speed mm |
15-120 | |
| Precision Error | ±0.05mm | |
| paper pile height | 260mm | |
| Cardboard pile height | 1000mm | |
| power supply | 38V 50Hz | |
| Electrical power | 27KW | |
| Glue tank capacity | 45L | |
Note: parts need to be added if the box is 85mm long or if the fold in depth is 100mm.
