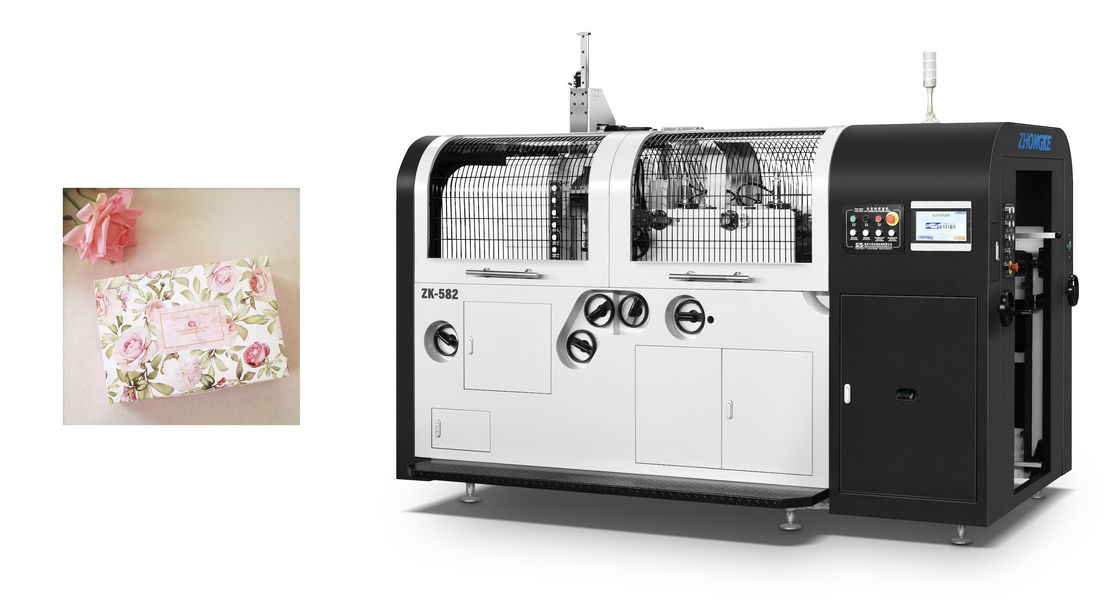

Silent Carton Box Forming Machine , Automatic Paper Box Making Machine

Silent Carton Box Forming Machine , Automatic Paper Box Making Machine

  • Silent Carton Box Forming Machine , Automatic Paper Box Making Machine
Silent Carton Box Forming Machine , Automatic Paper Box Making Machine
Product Details:
Place of Origin: China
Brand Name: Zhongke
Certification: CE, ISO900
Model Number: ZK-582
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden pallet or wooden case
Delivery Time: 1month after received 30% deposit
Payment Terms: 30% deposit+70%balance before shipment
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Type: Carton Box Forming Machine Height Of Paper Stockpile: 750mm
Feature: Silent Power Supply: 380V 50Hz
Electrical Power: 5.7KW Air Supply: 90L/min
Other Name: Automatic Paper Box Making Machine Automatic: Yes
Highlight:

jewellery box making machine

,

custom phone case maker machine

Silent Carton Box Forming Machine , Automatic Paper Box Making Machine

Carton Box Forming Machine  Function:

Carton Box Forming Machine for producing corrugated cardboarted.It mainly consist of the following equipment:Mill Roll Stand,surface paper(core-paper)pre-heater.Single Facer,Conveying Span Bridge Glue Application Machine,Double Facer,Scorer,Cut-off,Conveyer and Stacker,Heating System,Air compression system and Glue Making System,etc.The 3ply,5ply,7ply,and multi-function corrugated cardboard production line has high middle and low grade with different-quality equipment.On the base of understanding the requirements of the customents of the customers and the advanced skills at home and abroad,our company has developed and designed theae production lines

Carton Box Forming Machine Introdcution


  1. Employ PLC, camera tracing system and man-machine control to automatically form boxes in one process;
  2. Computer control with error auto stop and display;
  3. Automatically feed paper and greyboard;
  4. Remodel for irregular boxes and plastic boxes (optional);
  5. Automatic control system for glue viscosity(optional).

Carton Box Forming Machine Specifications


Function mode selection
Box Size
 Lmax300mm
 Lmin80mm
 Wmax200mm
 Wmin60mm
 Hmax

80≤L<120 Hmax=25
120≤L<160 Hmax=45
160≤L≤300 Hmax=60

 Hmin15mm
paper requirement
 Bmax582mm
 Bmin168mm
 Amax488mm
 Amin148mm
Back foldM13mm-18mm
Electrical power5.7KW
Air supply90L/min
Net weight3900KG
Machine overall dimension3500mm×2100mm×2400mm


Note

1 Limit of size may vary depending on the material of paper;
2 Standard size of M is 15mm;
