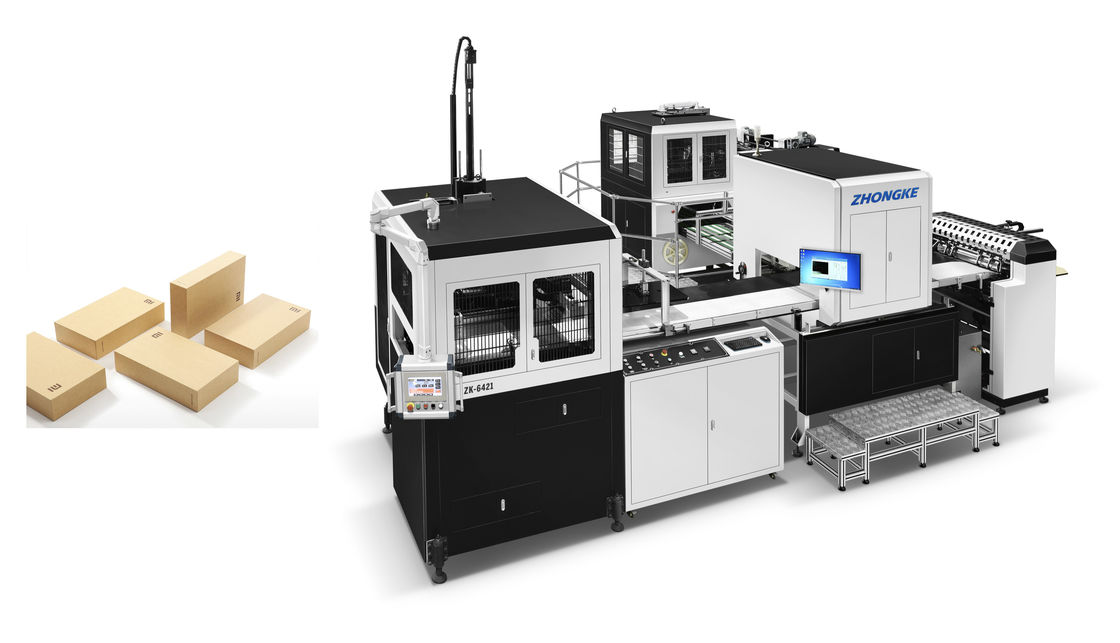

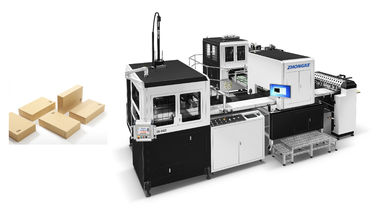

Low Noise Fully Automatic Corrugated Box Making Machine Troubleshooting Function

Low Noise Fully Automatic Corrugated Box Making Machine Troubleshooting Function

    • Low Noise Fully Automatic Corrugated Box Making Machine Troubleshooting Function
  • Low Noise Fully Automatic Corrugated Box Making Machine Troubleshooting Function

    Product Details:

    Place of Origin: China
    Brand Name: Zhongke
    Certification: CE, ISO900
    Model Number: ZK-660FBS

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiation
    Price: Negotiable
    Packaging Details: wooden pallet or wooden case
    Delivery Time: 1month after received 30% deposit
    Payment Terms: 30% deposit+70%balance before shipment
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Name: Fully Automatic Corrugated Box Making Machine Feature: Low Noise
    Application: Corrugated Box Speed: 15-35pcs/min
    Ear Folding: 15-120mm Precision Error: ±0.05mm
    Paper Pile Height: 260mm Power Supply: 38V 50Hz
    High Light:

    cardboard box manufacturing machine

    ,

    automatic box folding machine

    Low Noise Fully Automatic Corrugated Box Making Machine Troubleshooting Function



    Pre-Sales Service



    * Inquiry and consulting support.
    * Sample testing support.
    * View our Factory.

    After-Sales Service
    * Training how to instal the machine, training how to use the machine.
    * Engineers available to service machinery overseas.



    Fully Automatic Corrugated Box Making Machine configuration

    1. Automatically sucking covering paper and feeding grey board;
    2. Touchscreen HMI system of corner pasting device or board joining & box forming machine (optional)
    3. Visually positioning and manipulator capture system (positioning error ±0.05mm)
    4. 24-hour control of glue preheating;
    5. Glue viscosity automatic control system (optional)
    6. Completing multiple folding operations through servo driving box mold

    Fully Automatic Corrugated Box Making Machine Specifications



    Fully Automatic Corrugated Box Making Machine
    Box Size
    L max 400mm
    L min 85mm
    W max 300mm
    W min 60mm
    H max 125mm
    H min 12mm
    Turn in depth
    R max 100mm
    R min 15mm
    cover paper requirement
    B max 660mm
    B min 190mm
    A max 560mm
    A min 155mm
    paper pile height 260mm
    Cardboard pile height 1000mm
    power supply 38V 50Hz
    Electrical power 27KW
    Glue tank capacity 45L
    Air supply 12L/min
    Net weight 8100KG
    overall dimension 6800mm×4300mm×3000mm



    Note: parts need to be added if the box is 85mm long or if the fold in depth is 100mm.
