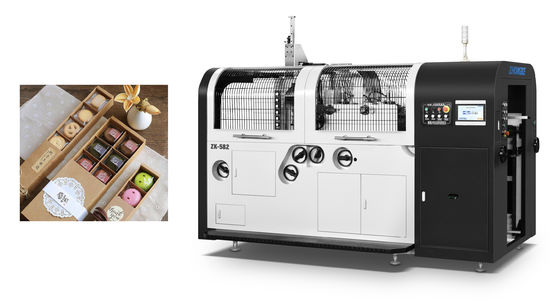

High Performance Automatic Rigid Box Making Machine With Touchscreen HMI

High Performance Automatic Rigid Box Making Machine With Touchscreen HMI

  • High Performance Automatic Rigid Box Making Machine With Touchscreen HMI
High Performance Automatic Rigid Box Making Machine With Touchscreen HMI
Product Details:
Place of Origin: China
Brand Name: Zhongke
Certification: CE, ISO900
Model Number: ZK-582
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden pallet or wooden case
Delivery Time: 1month after received 30% deposit
Payment Terms: 30% deposit+70%balance before shipment
Contact Now
Detailed Product Description
Net Weight: 2600kg Height Of Paper Stockpile: 350mm
Speed: 1800-2700(Pcs/h) Power Supply: 380V 50Hz
Noise Level: ≤80dB Air Supply: 80(Litre/min)
High Light:

jewellery box making machine

,

custom phone case maker machine

High Performance Automatic Rigid Box Making Machine With Touchscreen HMI



Automatic Rigid Box Making Machine description:



  1. Adopt multi-touch high sensitive safety switch ;
  2. Bottom mold adopts pneumatic structure, which effectively prevents the bubble;
  3. It adopts an innovative design--three curved surface cams, integrated on one main shaft, run in same direction simultaneously when machine works--which makes motions more coordinate and adjustment easier;
  4. Automatically wrap, fold ear and paper sides, continually finishing the box in one process ;
  5. It is equipped with time-delay device to adjust the period from putting on box to (top mold) pushing down, which ensure the operation safety;
  6. The safety cover is designed according to the CE standard which efficiently prevents the dis-operation and ensure the personal safety;
  7. It adopts curved surface cam structure which makes the machine run more stably and with lower noise.



Automatic Rigid Box Making Machine Structural features



  1. Feeding paper via servo linear slip way, enabling precision paper suction and positioning;
  2. Intelligent adhesive spray system, enabling automatic adhesive spray compensation;
  3. Innovatively designed automatic filling wall for wide-edged box;
  4. servo motor, PLC programmable controller, photoelectric tracer, touchscreen HMI and other systems

Automatic Rigid Box Making Machine Main Specifications





Sizes of paper

A=Windth;

B=Longth

Amin 220mm 220mm 300mm
Amax 620mm 540mm 540mm
Bmin 220mm 220mm 280mm
Bmax 740mm 630m 630mm
Cardoard blank thickness BEF 300-450g/ 300-450g/

Box size



L=Length;

W=Windth;

H=Height;

Lmin 120mm 120mm 120mm
Lmax 550mm 340mm 340mm
Wmin 120mm 120mm 140mm
Wmax 415mm 255mm 255mm
Hmin 25mm 25mm 35mm
Hmax 130mm 70mm 60mm

Turn in depth

:R

Rmin 20mm 20mm 20mm
Rmax 70mm 70mm 60mm

Broad-side edge width

:S

Smin / / 6mm
Smax 10mm
Power 380V 50Hz
Noise level ≤80dB
Speed 1800-2700(Pcs/h)
Cardboard pile height 350mm
Load-bearing of cardboard laydown platform 20kg
Electrical power 19kw
Capacity of hot melt applicator 8(Litre)
Air supply 80(Litre/min)
Net weight 2600kg
Machine overall dimension 1100mmx1700mmx2200mm




High Performance Automatic Rigid Box Making Machine With Touchscreen HMI 0

Note

The production speed depends on the material used, glue specifications and how skillfully the operator operates the machine.

L=Hx2+20mm.

the length of small box: L=Hx2+20mm

The forming of wide-edged boxes also depends on the material, it shall be subject to the real samples.

The specification is subject to change without notice.
