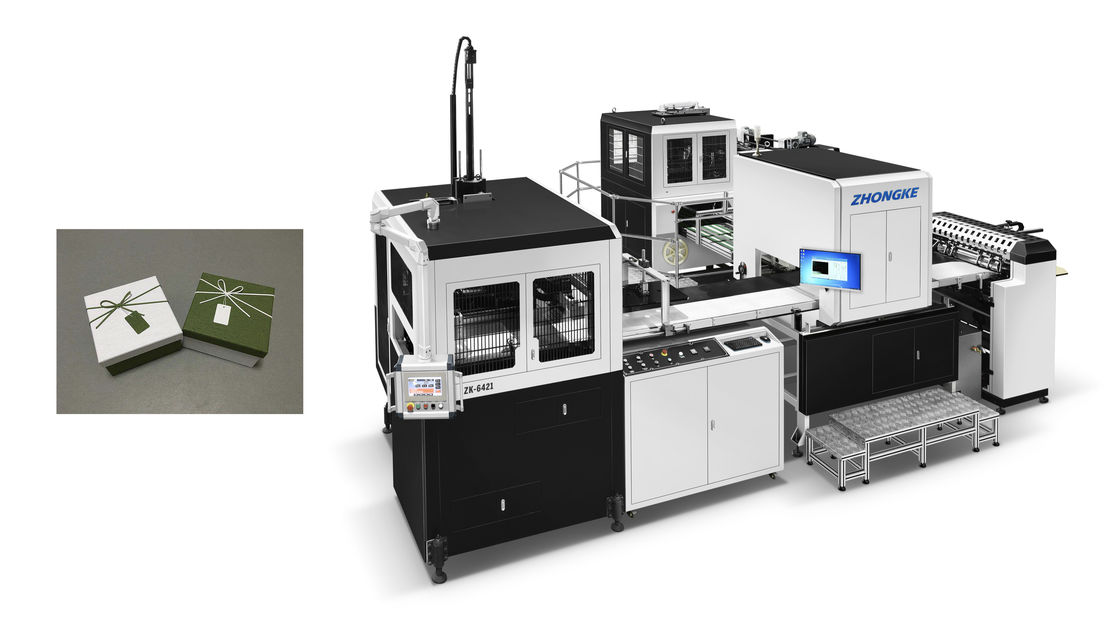

Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine

Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine

  • Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine
Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine
Product Details:
Place of Origin: China
Brand Name: Zhongke
Certification: CE, ISO900
Model Number: ZK-660FBS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden pallet or wooden case
Delivery Time: 1month after received 30% deposit
Payment Terms: 30% deposit+70%balance before shipment
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Name: Automatic Carton Box Making Machine Feature: Fully Automatic
Application: Corrugated Box Speed: High Speed
Ear Folding: 15-120mm Precision Error: ±0.05mm
Paper Pile Height: 260mm Control: PLC Control
Highlight:

automatic box maker

,

automatic box folding machine

Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine



Automatic Carton Box Making Machine Feature



1. International famous brand of electrical component such as PLC touch screen, frequency inverters, etc

2. Adopt human-machine operation system.

3. Automatically displaying device for trouble, speed and finished products counting.

4. Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.

5. No products not suction leaflet, no leaflet not suction carton .

6. Automatic detection and rejection device for lacking blister goods and leaflets

7. Protecting automatically for overloading.

8. stable performance , operation is easy.



Automatic Carton Box Making Machine configuration



  1. Applicable for the production of various rigid boxes;
  2. Automatically sucking covering paper and feeding grey board;
  3. Touchscreen HMI system of corner pasting device or board joining & box forming machine (optional)
  4. Completing multiple folding operations through servo driving box mold
  5. Parameterized setting of functions
  6. Troubleshooting function



Automatic Carton Box Making Machine Specifications



Fully Automatic Carton Box Making Machine / Corrugated Box Punching Machine
Turn in depth
R max 100mm
R min 15mm
cover paper requirement
B max 660mm
B min 190mm
A max 560mm
A min 155mm

paper wrap size

g/m2
100g/m2-350g/m2

Cardboard thickness

mm
0.8-3mm
pcs/min 15-35

Speed

mm
15-120
Precision Error ±0.05mm
paper pile height 260mm
Cardboard pile height 1000mm
power supply 38V 50Hz
Electrical power 27KW
Glue tank capacity 45L
Air supply 12L/min
Net weight 8100KG
overall dimension 6800mm×4300mm×3000mm



Note: parts need to be added if the box is 85mm long or if the fold in depth is 100mm.
