| Place of Origin: | China |
| Brand Name: | Zhongke |
| Certification: | CE, ISO900 |
| Model Number: | ZK-582 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden pallet or wooden case |
| Delivery Time: | 1month after received 30% deposit |
| Payment Terms: | 30% deposit+70%balance before shipment |
| Supply Ability: | 10 sets per month |
| Name: | Cardboard Box Making Machine | Height Of Paper Stockpile: | 750mm |
|---|---|---|---|
| Feature: | Powerful | Power Supply: | 380V 50Hz |
| Electrical Power: | 5.7KW | Air Supply: | 90L/min |
| Application: | Shoe Box Packing | Automatic: | Fully Automatic |
| High Light: | jewellery box making machine,cardboard box making equipment |
||

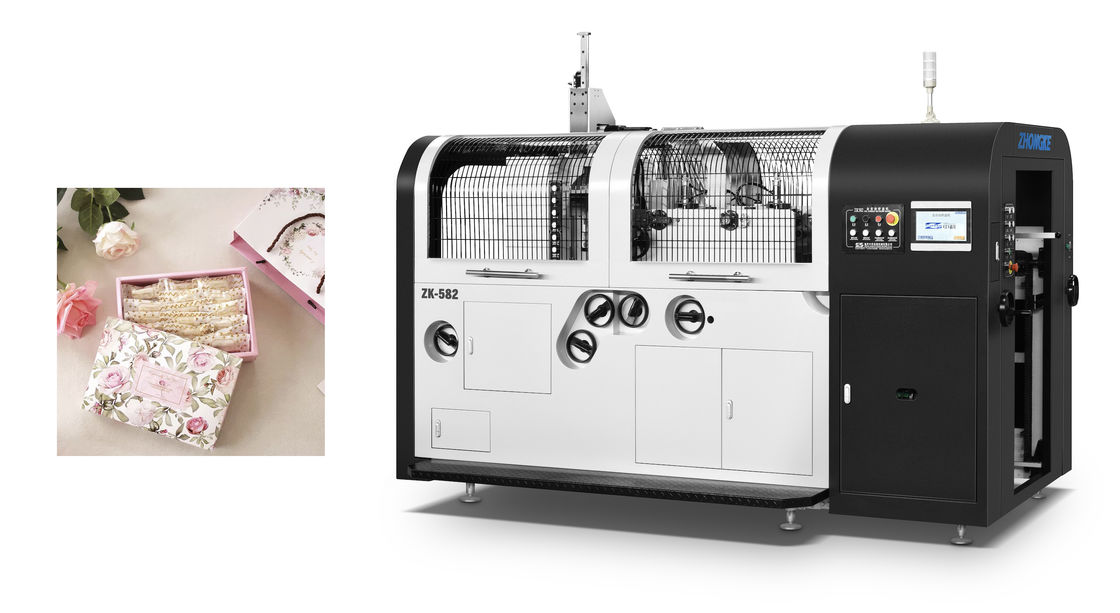

Fully Automatic Cardboard Box Making Machine For Shoe Box Packing
Cardboard Box Making Machine Introdcution
This equipment adopts servo motion control, photoelectic sensor, touchscreen HMI and other systems to make it possible that automatic paper feeding, edge folding and box folding are completed in one operation. It is applicable for the production of rigid boxes made of 250-400g white cardboard and white board. So it is widely used for the production of rigid packing boxes for food, clothes, shoes, toys, commodities and health care products.
Cardboard Box Making Machine Features
Cardboard Box Making Machine Specifications
| Function mode selection | |||
| Box Size | |||
| L | max | 300mm | |
| L | min | 80mm | |
| W | max | 200mm | |
| W | min | 60mm | |
| H | max |
80≤L＜120 Hmax=25 120≤L＜160 Hmax=45 160≤L≤300 Hmax=60 |
|
| H | min | 15mm | |
| paper requirement | |||
| B | max | 582mm | |
| B | min | 168mm | |
| A | max | 488mm | |
| A | min | 148mm | |
| Back fold | M | 13mm－18mm | |
| Cardboard size | White board paper | 250g/m2－400g/m2 | |
| Lvort board | |||
| Speed | (Pcs/h) | 1200-3000(Pcs/h) | |
| Height of paper stockpile | 750mm | ||
| Load-bearing of cardboard laydown platform | 60kg | ||
| Power supply | 38V 50Hz | ||
| Electrical power | 5.7KW | ||
| Air supply | 90L/min | ||
| Net weight | 3900KG | ||
| Machine overall dimension | 3500mm×2100mm×2400mm | ||
Note
1 Limit of size may vary depending on the material of paper;
2 Standard size of M is 15mm;
