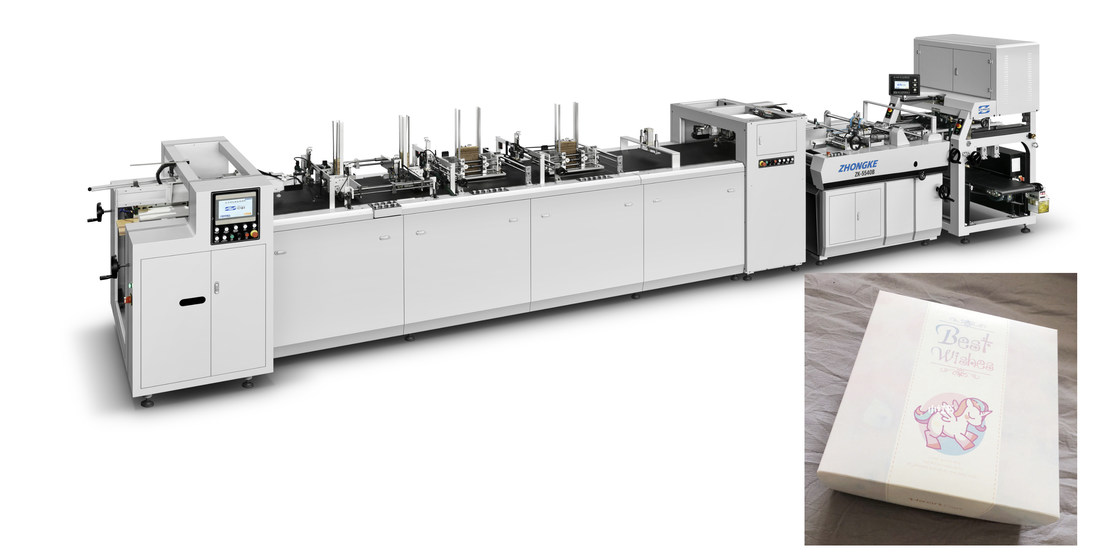

Decorative Cardboard Box Manufacturing Machine , Square Paper Box Making Machine

Decorative Cardboard Box Manufacturing Machine , Square Paper Box Making Machine

Cardboard Box Manufacturing Machine Introduction

gift packing box making machine intelligent Automatic Rigid box making machine is composed of automatic feeding & gluing machine ,automatic tapping machine, automatic positioning machine and automatic forming machine,it's the most advanced rigid box maing machine till now.

1. Hot melt automatic cycle, mixing, automatic viscosity-control series.

2. The glue coating is evenly, thickness adopt machanical tuning machanism.

3. Automatic correction using photoelectric hydraulic pneumatic mechanism, enables improved precision.

4. Automatic collect box forming part adopt guide rod, improved the precision.

5. Forming and folding mechanism adopts mechanical and electrical pneumatic to solve the whole folding ear middle folding ear.

6. Forming and folding mechanism adopts mechanical and pneumatic together to achieve full fold into the high-end 60mm

Automatic Rigid Box Making Machine Structural features

1. Intelligent adhesive spray system, enabling automatic adhesive spray compensation;
2. Innovatively designed automatic filling wall for wide-edged box;
3. servo motor, PLC programmable controller, photoelectric tracer, touchscreen HMI and other systems
4. Infrared safety protection system to ensure the safety of operators;

Cardboard Box Manufacturing Machine Main Specifications

Note

The production speed depends on the material used, glue specifications and how skillfully the operator operates the machine.

L=Hx2+20mm.

the length of small box: L=Hx2+20mm

The forming of wide-edged boxes also depends on the material, it shall be subject to the real samples.

The specification is subject to change without notice.

Cardboard Box Manufacturing Machine Details
