Place of Origin: | China |
Brand Name: | Zhongke |
Certification: | CE, ISO900 |
Model Number: | ZK-320 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | wooden pallet or wooden case |
Delivery Time: | 1month after received 30% deposit |
Payment Terms: | 30% deposit+70%balance before shipment |
Speed: | 15-30 Pcs / Min | Product Name: | High Speed Box Making Machine |
---|---|---|---|
Applications: | Jewelry Box, Gift Box, Cosmetic Box | Power: | 380 V 50 HZ |
Net Weight: | 2300 Kg | Precision Error: | ± 0.3-0.5 Mm |
High Light: | jewellery box making machine,automatic forming machine |
Automatic computer controlled, automatic failure detection; automatic cardboard feeding by feeder Four sets of electric melting cutting devices ensures angles gluing of rough box is done in one time, which ensures that four angles are smooth and neat, without askewness, and efficiency and efficiency are also ensured. Quick mould switching control device ensures that the length of tape for corner paste can be adjusted.
Main function:
1. Intelligent spray glue system, Realize automatic spraying glue compensation function
2. Cardboard feeding automatically,achieves corrugate-feeding, edge wrapping, corner folding and forming in one process.
3. It adopts PLC programmable controller, photoelectric tracing system, air testing running system and touch-sensitive screen. The entire process is automatic.
4. Infrared security protective system, to ensure safe operation.
5. Automatic trouble diagnosing.
6. Fast changing mould adjusting device
1. Feida system feeding the paper piece by piece automatically.
2. Equipped with heat exchanging gluing system.
3. Inner cardboard w/o four angle pasting, save cost and fast speed.
4. Spotter system achieves accurately registration for unwrapped box and glued wrap paper by servomotor and vacuum suction belt conveyor, with positioning accuracy ±0.5mm
5. Automatic arm guiding device is between conveyor belt and wrapper unit, which is controlled by computer.
6. Wrapper unit achieves box-feeding, side winding, corner folding and rolling over.
7. It adopts PLC programmable controller, photoelectric tracing system and touch-sensitive screen. The wrapped box is finished in one process.
8. Automatic trouble diagnosing.
Description:

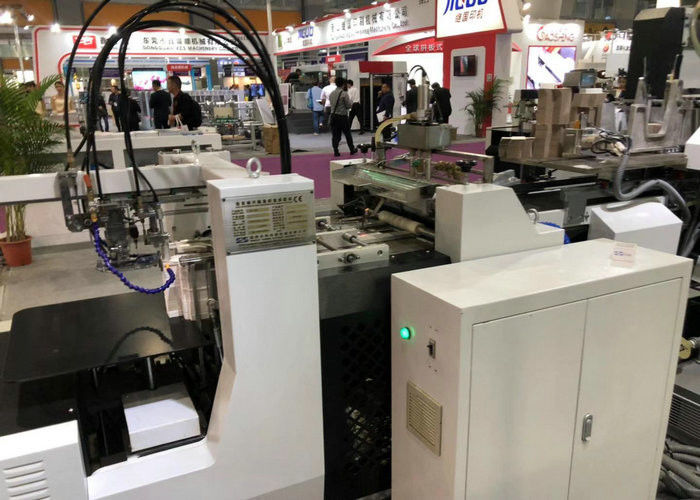

ZK-320 is the most advanced equipment of making rigid set-up box (such as Jewelry box, gift box, cosmetic box etc), It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, inner cardboard w/o four angle pasting and location directly, automatic arm guiding, wrapping, folding and box forming in one process, the entire processes are automatic.
Specifications:
Corner folding size Min | 12mm |
Corner folding size Max | 40mm |
Paper Wrap gram Min | 100g/㎡ |
Paper Wrap gram Max | 250g/㎡ |
Cardboard blank thickness Min | 0.8mm |
Cardboard blank thickness Max | 2mm |
Speed | 15-30pcs/min |
Precision error | ±0.3-0.5mm |
Cardboard pile height | 350mm |
Paper pile height | 270mm |
Power | 380V50HZ |
Electrical power | 9.57kw |
Glue tank capacity | 24L |
Air supply | 12L/min |
Net weight | 2300kg |
Machine overall dimension | L4.3*1.55*H2.3m |
Paper wrap size A=width; B=length |
Amin | 80mm |
Amax | 300mm | |
Bmin | 90mm | |
Bmax | 400mm | |
Box size L=length; W=width; H=height; |
Lmin | 60mm |
Lmax | 250mm | |
Wmin | 50mm | |
Wmax | 150mm | |
Hmin | 10mm | |
Hmax | 60mm | |
Folding Edge Range:R |
Rmin | 10mm |
Rmax | 35mm |
Competitive Advantage:
Fitting of cardboard of inner box without gluing four angles.
