| Place of Origin: | China |
| Brand Name: | Zhongke |
| Certification: | CE, ISO900 |
| Model Number: | ZK-582 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden pallet or wooden case |
| Delivery Time: | 1month after received 30% deposit |
| Payment Terms: | 30% deposit+70%balance before shipment |
| Supply Ability: | 10 sets per month |
| Name: | Paper Packaging Box Making Machine | Height Of Paper Stockpile: | 750mm |
|---|---|---|---|
| Feature: | Automated | Power Supply: | 380V 50Hz |
| Electrical Power: | 5.7KW | Application: | Cake Box Manufacturing Machine |
| High Light: | custom phone case maker machine,cardboard box making equipment |
||

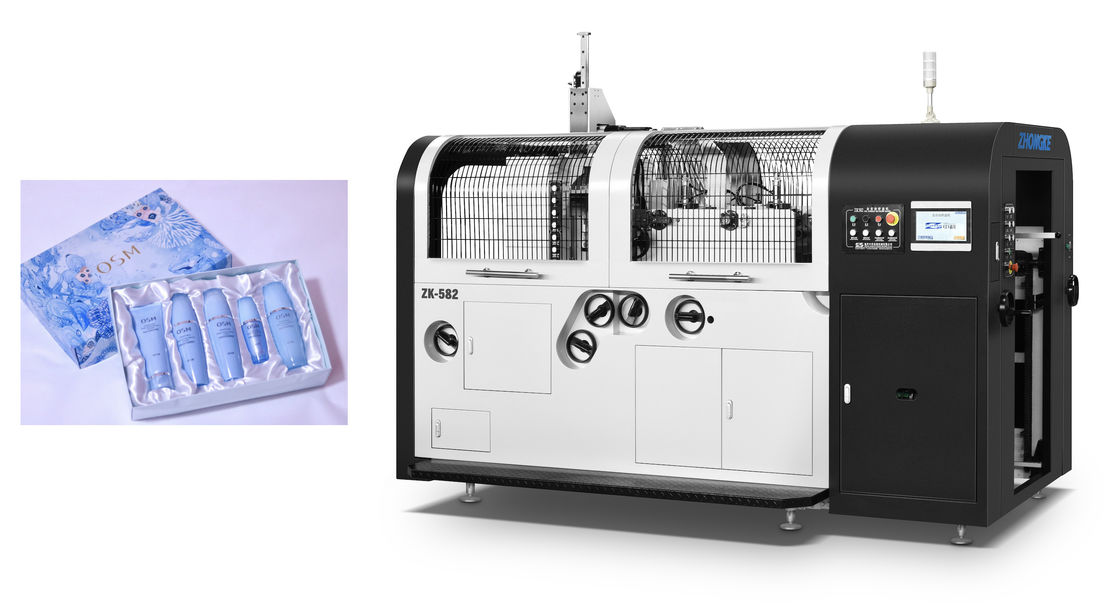

Automated Paper Packaging Box Making Machine / Cake Box Manufacturing Machine
Paper Packaging Box Making Machine advantage
Paper Packaging Box Making Machine are most popular in packaging and printing advertising industries. With multi-funtions, corrugated cardboard box making machine with standard configuration(oscilltaing and non- oscilltaing tool, creasing wheel, pen) can not only full cut, but also half cut, kiss cut, plot, pain, crease etc. Red cross point positioning function and camera registration are equipped for you to cut printed materials. For other functions, you can view the introduction below or contact us directly.
Paper Packaging Box Making Machine Features
Paper Packaging Box Making Machine Specifications
| Automated Paper Packaging Box Making Machine / Cake Box Manufacturing Machine | |||
| Box Size | |||
| L | max | 300mm | |
| L | min | 80mm | |
| W | max | 200mm | |
| W | min | 60mm | |
| H | max |
80≤L＜120 Hmax=25 120≤L＜160 Hmax=45 160≤L≤300 Hmax=60 |
|
| H | min | 15mm | |
| paper requirement | |||
| B | max | 582mm | |
| B | min | 168mm | |
| A | max | 488mm | |
| A | min | 148mm | |
| Back fold | M | 13mm－18mm | |
| Cardboard size | White board paper | 250g/m2－400g/m2 | |
| Lvort board | |||
| Speed | (Pcs/h) | 1200-3000(Pcs/h) | |
| Height of paper stockpile | 750mm | ||
| Load-bearing of cardboard laydown platform | 60kg | ||
| Power supply | 38V 50Hz | ||
| Electrical power | 5.7KW | ||
| Air supply | 90L/min | ||
Note
1 Limit of size may vary depending on the material of paper;
2 Standard size of M is 15mm;
