8100 KG Cardboard Box Folding Machine , 12 L / Min Automatic Box Maker

8100 KG Cardboard Box Folding Machine , 12 L / Min Automatic Box Maker

    • 8100 KG Cardboard Box Folding Machine , 12 L / Min Automatic Box Maker
  • 8100 KG Cardboard Box Folding Machine , 12 L / Min Automatic Box Maker

    Product Details:

    Place of Origin: China
    Brand Name: Zhongke
    Certification: CE, ISO900

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: wooden pallet or wooden case
    Delivery Time: 1month after received 30% deposit
    Payment Terms: 30% deposit+70%balance before shipment
    Contact Now
    Detailed Product Description
    Electrical Power: 24KW Glue Tank Capacity: 45L
    Air Supply: 12L/min Net Weight: 8100 KG
    Overall Dimension: 6800mm×4300mm×3000mm Condition: New
    High Light:

    carton box manufacturing machine


    paper box manufacturing machine

    Quick Detail:


    • Suitable for all kinds of automatic rigid box production line.
    • Automatic suction and conveying of paper and cardboard.
    • Full computer function parameter setting and fault alarm function.
    • 4. The whole machine adopts the control system of the motion controller, and touch screen man-machine interface control system.
    • 5. Taping machine using separate man-machine interface control system.
    • 6. Electronic cam and mechanical cam combine to play their respective advantages.
    • 7. Visual manipulator positioning (error ± 0.05mm).
    • 8. 24-hour control glue preheating function, glue viscosity automatic control system (optional).

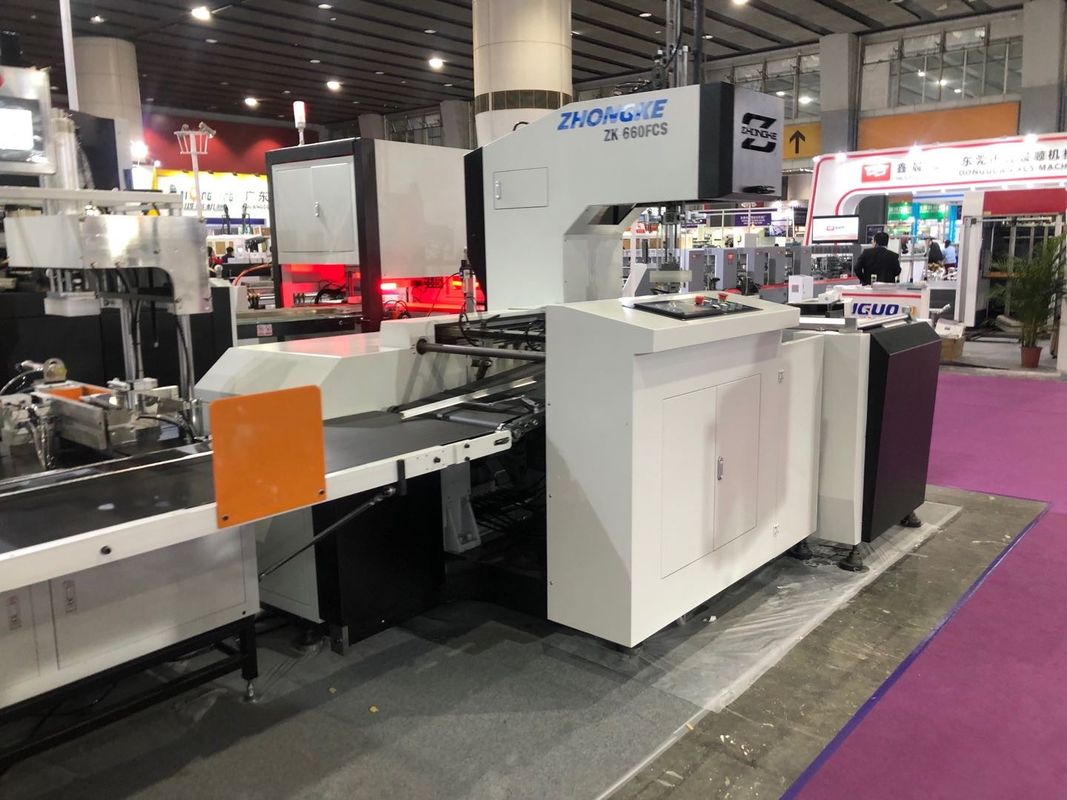

    • ZK-660FCS full automatic rigid box making machine, using motion controller system, visual manipulator system and touch screen man-machine interface system, which achieve automatic paper feeding, gluing, cardboard four corners taping, positioning, feeding, edge covering, full ear folding, forming and shaping of the finished box. The whole operations are fully automatic.



    The equipment is used to produce high-end cardboard boxes such as phone box packaging, gift packaging, cosmetics packaging,industrial standard part packaging, food packaging, digital appliance packaging, stationery packaging and pharmaceutical supply packaging of various major types and styles.





    Model ZK-660FCS
    Function mode selection I standard II half ear fold III full ear fold
    Box Size
    Length L max 400mm 400mm 400mm
    Length L min 85mm 85mm 85mm
    Width W max 300mm 200mm 100mm
    Width W min 60mm 60mm 60mm
    Height H max 125mm 120mm 120mm
    Height H min 12mm 45mm 45mm
    Turn In Depth
    Turn in R max 70mm
    Turn in R min 15mm
    Paper wrap size
    Length B max 660mm
    Length B min 190mm
    Width A max 560mm
    Width A min 155mm
    Thickness g/m2 max 100
    Thickness g/m2 min 350
    Thickness mm max 3
    Thickness mm min 0.8
    Speed pcs/min 15-35 15-30 15-25
    Ear folding mm 15 15-100 15-100
    Precision Error ±0.05mm
    Paper pile height     260mm
    cardboard pile height     1000mm
    Electrical power 24KW
    Glue tank capacity 45L
    Air supply 12L/min
    Net weight 8100KG
    Overall dimension 6800mm×4300mm×3000mm


    Note: The minimum length of box (85mm) requires additional spare parts.


    Competitive Advantage:


    1 It can switch freely between the boutique box and ordinary box, and freely adjust the inner folding depth


    2 The equipment can make box with smoothing surface, no paper folding and printing marks, adopts the cardboard joining and gluing method(optional) and the full ear folding mechanism to overcome the drawbacks of the ordinary rigid box


    3 The use of virtual cam drive and mechanical cam to play their respective advantages, so that the action is more stable and more flexible. It is convenient for customers to make multiple samples of the box and improve efficiency.


    4 The online glue viscosity testing system tests the glue viscosity in a real-time manner so as to ensure proper gluing in an inclement environment.


    5Visual manipulator system are adopted to make correct deviation, making pasting and positioning more accurate and making exquisite boxes look neater.



    Place of Origin: CHINA
    Brand Name: ZHONGKE
    Certification: CE
    Model Number: ZK-660FCS



    Minimum Order Quantity: 1 SET
    Price: /
    Packaging Details: WOODEN PALLET
    Delivery Time: 30 days after order confirm and received payment
    Payment Terms: TT, LC
    Supply Ability: 200-300 Sets per year
