| Place of Origin: | China |
| Brand Name: | Zhongke |
| Certification: | CE, ISO900 |
| Model Number: | ZK-900 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden pallet or wooden case |
| Delivery Time: | 1month after received 30% deposit |
| Payment Terms: | 30% deposit+70%balance before shipment |
| Controller: | PLC Programmable Controller | Glue Tank Capacity: | 45 L |
|---|---|---|---|
| Air Supply: | 12 L / Min | Paper Pile Height: | 260 Mm |
| Speed: | 15-25 Pcs / Min | Net Weight: | 7800 Kg |
| High Light: | automatic forming machine,custom phone case maker machine |
||
Quick Detail:
1. Feeding system feeds the paper wrap piece by piece automatically.
2. Equipped with heat exchanging Gluing system.
3. Heat Sealed device equipped achieves corner sticking for cardboard in one process.
4. Spotter system achieves exactly position for unwrapped box and glued wrap by servomotor and vacuum suction belt conveyor, with precision error 0.5mm.
5. Automatic arm guiding device is between conveyor belt and Wrapper unit, who is controlled by computer.
6. Wrapper unit achieves box-feeding, side-winding, roll-folding and rolling over.
7. It adopts PLC programmable controller, photoelectric tracing system and touch-sensitive screen. The wrapped box is finished in one process.
8. Automatic trouble diagnosing.
Description:

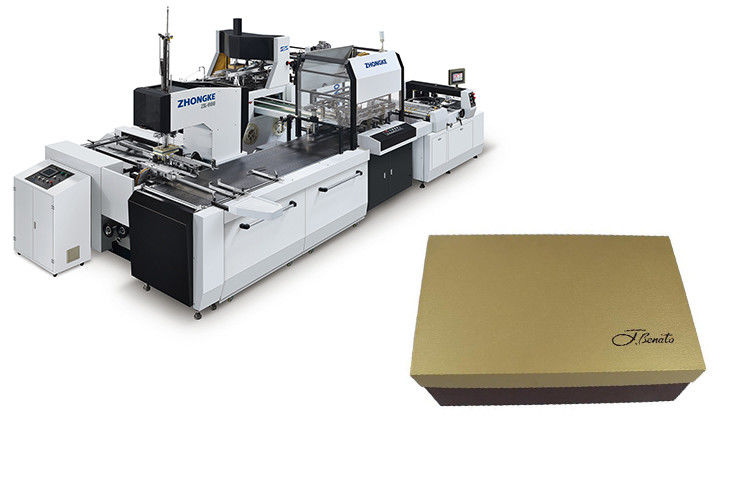

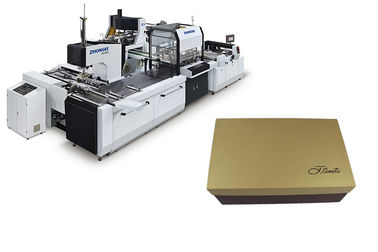

ZK-900 full automatic rigid box making machinery is the most advanced equipment of making the rigid set-up box (such as shoe-box, shirt box, underwear box, gift box, food box, hardware box etc). It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, cardboard folding, spotting, automatic arm guiding, wrapping, box coming out in one process. The entire processes are automatic. Compared with the traditional hand made production, the produce efficiency improves by 50 times.
Applications:
shoe-box, shirt box, underwear box, gift box, food box, hardware box etc
Specifications:
| Paper Wrap gram Min | 100g/㎡ |
| Paper Wrap gram Max | 157g/㎡ |
| Cardboard blank thickness Min | 0.8mm |
| Cardboard blank thickness Max | 2.5mm |
| Speed | 15-25pcs/min |
| Precision error | ±0.3-0.5mm |
| Cardboard pile height | 1000mm |
| Paper pile height | 260mm |
| Power | 380V50HZ |
| Electrical power | 22kw |
| Glue tank capacity | 45L |
| Air supply | 12L/min |
| Net weight | 7800kg |
| Machine overall dimension | L8.5*W4.4*H2.95m |
| Paper wrap size A=width; B=length |
Amin | 222mm 122mm |
| Amax | 700mm 700mm | |
| Bmin | 192mm 272mm | |
| Bmax | 900mm 900mm | |
| Box size L=length; W=width; H=height; |
Lmin | 120mm 200mm |
| Lmax | 600mm 600mm | |
| Wmin | 150mm 50mm | |
| Wmax | 400mm 400mm | |
| Hmin | 20mm 20mm | |
| Hmax | 125mm 125mm | |
|
Folding Edge Range:R |
Rmin | 15mm 15mm |
| Rmax | 25mm 25mm |
Competitive Advantage:
Fitting of cardboard of inner box without gluing four angles
