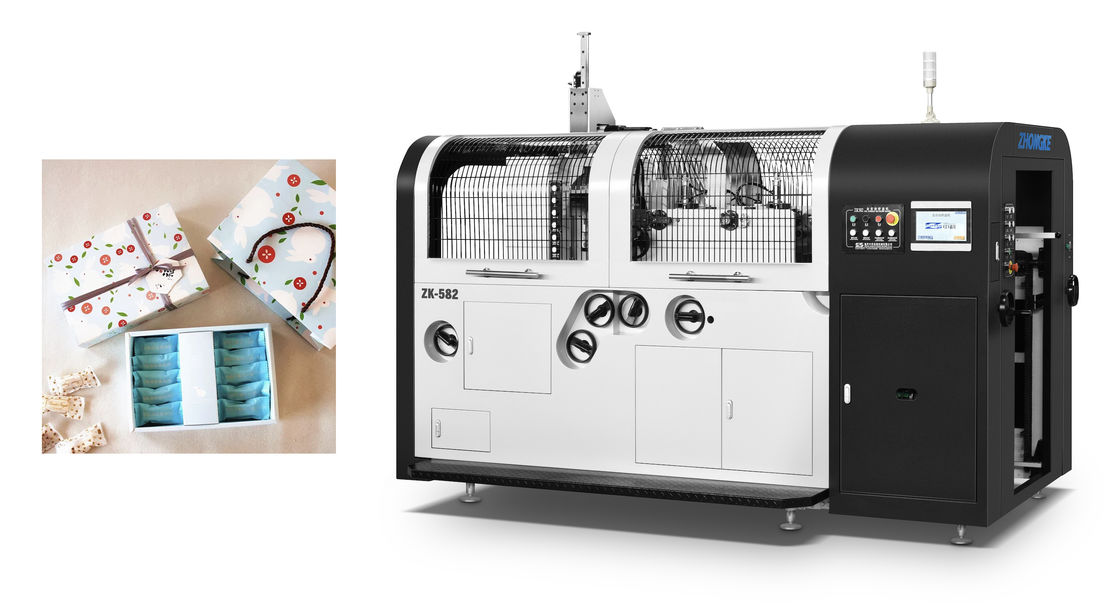

Fully Automatic Corrugated Box Making Machine For Food , Clothes , Shoes Box

Fully Automatic Corrugated Box Making Machine For Food , Clothes , Shoes Box

Fully Automatic Corrugated Box Making Machine For Food , Clothes , Shoes Box

Product Details:

Place of Origin: China
Brand Name: Zhongke
Certification: CE, ISO900
Model Number: ZK-582

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: wooden pallet or wooden case
Delivery Time: 1month after received 30% deposit
Payment Terms: 30% deposit+70%balance before shipment
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Name: Fully Automatic Corrugated Box Making Machine Height Of Paper Stockpile: 750mm
Feature: Powerful Electrical Power: 5.7KW
Air Supply: 90L/min Application: Food , Clothes , Shoes Box
Automatic: Yes

Fully Automatic Corrugated Box Making Machine For Food , Clothes , Shoes Box​



Fully Automatic Corrugated Box Making Machine Introdcution



This Fully Automatic Corrugated Box Making Machine adopts servo motion control, photoelectic sensor, touchscreen HMI and other systems to make it possible that automatic paper feeding, edge folding and box folding are completed in one operation. It is applicable for the production of rigid boxes made of 250-400g white cardboard and white board. So it is widely used for the production of rigid packing boxes for food, clothes, shoes, toys, commodities and health care products.



Fully Automatic Corrugated Box Making Machine Features

  1. servo motion control, photoelectic sensor, touchscreen HMI and other systems
  2. Full automation of the whole process from folding to shaping of rigid box
  3. Automatic troubleshooting;

Fully Automatic Corrugated Box Making Machine Specifications



Fully Automatic Corrugated Box Making Machine
Box Size
  L max 300mm
  L min 80mm
  W max 200mm
  W min 60mm
  H max

80≤L<120 Hmax=25

120≤L<160 Hmax=45

160≤L≤300 Hmax=60

  H min 15mm
paper requirement
  B max 582mm
  B min 168mm
  A max 488mm
  A min 148mm
Back fold M 13mm-18mm
Cardboard size White board paper 250g/m2-400g/m2
Lvort board
Speed (Pcs/h) 1200-3000(Pcs/h)
Height of paper stockpile 750mm
Load-bearing of cardboard laydown platform 60kg
Power supply 38V 50Hz
Electrical power 5.7KW
Air supply 90L/min
Net weight 3900KG
Machine overall dimension 3500mm×2100mm×2400mm



Note



1 Limit of size may vary depending on the material of paper;

2 Standard size of M is 15mm;
