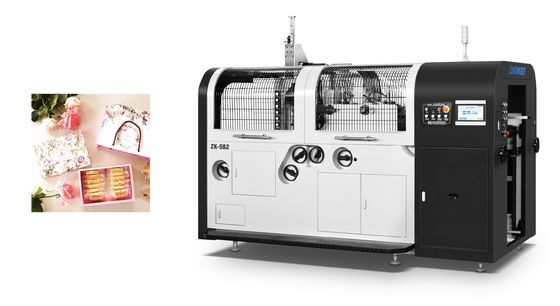

5.7KW Custom Phone Case Maker Machine / Automatic Paper Box Making Machine

5.7KW Custom Phone Case Maker Machine / Automatic Paper Box Making Machine

    • 5.7KW Custom Phone Case Maker Machine / Automatic Paper Box Making Machine
  • 5.7KW Custom Phone Case Maker Machine / Automatic Paper Box Making Machine

    Product Details:

    Place of Origin: China
    Brand Name: Zhongke
    Certification: CE, ISO900
    Model Number: ZK-582

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: wooden pallet or wooden case
    Delivery Time: 1month after received 30% deposit
    Payment Terms: 30% deposit+70%balance before shipment
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Name: Custom Phone Case Maker Machine Height Of Paper Stockpile: 75cm
    Speed: 1200-3000(Pcs/h) Power Supply: 380V
    Electrical Power: 5.7KW Air Supply: 90L/min
    Other Name: Automatic Paper Box Making Machine Automatic: Yes
    High Light:

    jewellery box making machine

    ,

    custom phone case maker machine

    5.7KW Custom Phone Case Maker Machine / Automatic Paper Box Making Machine



    Custom Phone Case Maker Machine standard configuration

    1. Automatic troubleshooting;
    2. Infrared safety protection system to ensure the safety of operators;
    3. Quick changeover adjustment device.

    Custom Phone Case Maker Machine Features:



    1) This machine is in special design with a Correction unit for the corrugated box (E/B flute). We equip good parts on machine: Siemens motor, Schneide Electric/PLC, Japanese Nitta belts and bearings.



    2) The machine is running steady with strengthened driving system, and easy for maintenance.



    3) The motor is controlled by transducers which are available for automatic timing. It is power saved and helps to work stably.



    4) Feeder is controlled by a separated motor. Paper is usually feed by several thick belts under the help of vibration motor. Feeding is continuous, exact and automatic with this system.



    5) An optional for paper feeding length of 30cm is available after the special design.



    Custom Phone Case Maker Machine Specifications





    Function mode selection
    5.7KW Custom Phone Case Maker Machine / Automatic Paper Box Making Machine
    Box Size
      L max 300mm
      L min 80mm
      W max 200mm
      W min 60mm
      H max

    80≤L<120 Hmax=25

    120≤L<160 Hmax=45

    160≤L≤300 Hmax=60

      H min 15mm
    paper requirement
      B max 582mm
      B min 168mm
      A max 488mm
      A min 148mm
    Back fold M 13mm-18mm
    Cardboard size White board paper 250g/m2-400g/m2
    Lvort board
    Speed (Pcs/h) 1200-3000(Pcs/h)
    Height of paper stockpile 750mm
    Load-bearing of cardboard laydown platform 60kg
    Power supply 38V 50Hz
    Electrical power 5.7KW
    Air supply 90L/min
    Net weight 3900KG
    Machine overall dimension 3500mm×2100mm×2400mm



    Note



    1 Limit of size may vary depending on the material of paper;

    2 Standard size of M is 15mm;



    Custom Phone Case Maker Machine Details



    5.7KW Custom Phone Case Maker Machine / Automatic Paper Box Making Machine 0
