| Place of Origin: | China |
| Brand Name: | Zhongke |
| Certification: | CE, ISO900 |
| Model Number: | ZK-660FBS |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden pallet or wooden case |
| Delivery Time: | 1month after received 30% deposit |
| Payment Terms: | 30% deposit+70%balance before shipment |
| Paper Wrap Size: | 100g/m2－350g/m2 | Cardboard Thickness: | 0.8－3mm |
|---|---|---|---|
| Speed: | 15-35pcs/min | Ear Folding: | 15-120mm |
| Precision Error: | ±0.05mm | Paper Pile Height: | 260mm |
| High Light: | cardboard box manufacturing machine,cardboard making machinery and equipment |
||

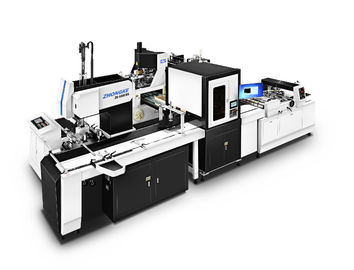

PLC Control Corrugated Box Making Machine / Precision Corrugated Paper Box Machinery
Corrugated Box Making Machine Description:
The equipment adopts motion controller, visual manipulator for positioning ,HMI System,which make it possible that paper feeding, gluing, cardboard four corners taping, feeding, edge covering, full ear folding, forming and shaping of the finished box are completed in one operation.Through the electronic cam gear rack structure driving the box mold to operate, it can independently complete multiple deep folding operations so as to meet the requirements of high-end products and boxes free of folding trace in the market.
Corrugated Box Making Machine Features and standard configuration
Corrugated Box Making Machine Main Specifications
| Function mode selection | ||
| Box Size | ||
| L | max | 400mm |
| L | min | 85mm |
| W | max | 300mm |
| W | min | 60mm |
| H | max | 125mm |
| H | min | 12mm |
| Turn in depth | ||
| R | max | 100mm |
| R | min | 15mm |
| cover paper requirement | ||
| B | max | 660mm |
| B | min | 190mm |
| A | max | 560mm |
| A | min | 155mm |
|
paper wrap size g/m2 |
100g/m2－350g/m2 | |
|
Cardboard thickness mm |
0.8－3mm | |
| pcs/min | 15-35 | |
|
Speed mm |
15-120 | |
| Precision Error | ±0.05mm | |
| paper pile height | 260mm | |
| Cardboard pile height | 1000mm | |
| power supply | 38V 50Hz | |
| Electrical power | 27KW | |
| Glue tank capacity | 45L | |
| Air supply | 12L/min | |
| Net weight | 8100KG | |
| overall dimension | 6800mm×4300mm×3000mm | |
Note: parts need to be added if the box is 85mm long or if the fold in depth is 100mm.
