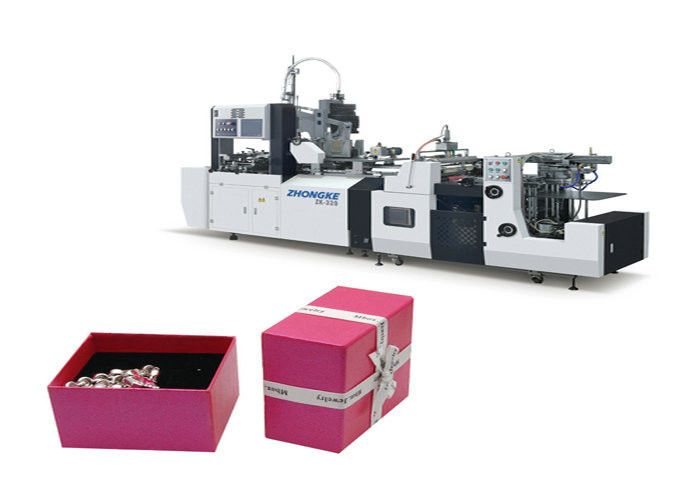

Durable Automatic Paper Box Making Machine 270 Mm Paper Pile Height

Durable Automatic Paper Box Making Machine 270 Mm Paper Pile Height

    • Durable Automatic Paper Box Making Machine 270 Mm Paper Pile Height
  • Durable Automatic Paper Box Making Machine 270 Mm Paper Pile Height

    Product Details:

    Place of Origin: China
    Brand Name: Zhongke
    Certification: CE, ISO900
    Model Number: ZK-320

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: wooden pallet or wooden case
    Delivery Time: 1month after received 30% deposit
    Payment Terms: 30% deposit+70%balance before shipment
    Contact Now
    Detailed Product Description
    Paper Pile Height: 270mm Speed: 15-30 Pcs / Min
    Applications: Jewelry Box, Gift Box, Cosmetic Box Power: 380 V 50 HZ
    Net Weight: 2300 Kg Precision Error: ± 0.3-0.5 Mm
    High Light:

    cardboard box manufacturing machine

    ,

    automatic box maker

    Main function:


    1. Intelligent spray glue system, Realize automatic spraying glue compensation function
    2. Cardboard feeding automatically,achieves corrugate-feeding, edge wrapping, corner folding and forming in one process.
    3. It adopts PLC programmable controller, photoelectric tracing system, air testing running system and touch-sensitive screen. The entire process is automatic.
    4. Infrared security protective system, to ensure safe operation.
    5. Automatic trouble diagnosing.
    6. Fast changing mould adjusting device



    1. Feida system feeding the paper piece by piece automatically.
    2. Equipped with heat exchanging gluing system.
    3. Inner cardboard w/o four angle pasting, save cost and fast speed.
    4. Spotter system achieves accurately registration for unwrapped box and glued wrap paper by servomotor and vacuum suction belt conveyor, with positioning accuracy ±0.5mm
    5. Automatic arm guiding device is between conveyor belt and wrapper unit, which is controlled by computer.
    6. Wrapper unit achieves box-feeding, side winding, corner folding and rolling over.
    7. It adopts PLC programmable controller, photoelectric tracing system and touch-sensitive screen. The wrapped box is finished in one process.
    8. Automatic trouble diagnosing.



    Automatic computer controlled, automatic failure detection; automatic cardboard feeding by feeder Four sets of electric melting cutting devices ensures angles gluing of rough box is done in one time, which ensures that four angles are smooth and neat, without askewness, and efficiency and efficiency are also ensured. Quick mould switching control device ensures that the length of tape for corner paste can be adjusted.





    Description:



    ZK-320 is the most advanced equipment of making rigid set-up box (such as Jewelry box, gift box, cosmetic box etc), It adopts PLC programmable controller, photoelectric tracing system, touch-sensitive screen, achieving paper feeding, gluing, inner cardboard w/o four angle pasting and location directly, automatic arm guiding, wrapping, folding and box forming in one process, the entire processes are automatic.





    Specifications:

    Corner folding size Min 12mm
    Corner folding size Max 40mm
    Paper Wrap gram Min 100g/㎡
    Paper Wrap gram Max 250g/㎡
    Cardboard blank thickness Min 0.8mm
    Cardboard blank thickness Max 2mm
    Speed 15-30pcs/min
    Precision error ±0.3-0.5mm
    Cardboard pile height 350mm
    Paper pile height 270mm
    Power 380V50HZ
    Electrical power 9.57kw
    Glue tank capacity 24L
    Air supply 12L/min
    Net weight 2300kg
    Machine overall dimension L4.3*1.55*H2.3m







    Paper wrap size
    A=width;
    B=length
    Amin 80mm
    Amax 300mm
    Bmin 90mm
    Bmax 400mm
    Box size
    L=length;
    W=width;
    H=height;
    Lmin 60mm
    Lmax 250mm
    Wmin 50mm
    Wmax 150mm
    Hmin 10mm
    Hmax 60mm

    Folding Edge Range:R

    Rmin 10mm
    Rmax 35mm









    Competitive Advantage:



    Fitting of cardboard of inner box without gluing four angles.





    Place of Origin: China
    Brand Name: Zhongke
    Certification: CE,ISO900
    Model Number: Zk-320





    Minimum Order Quantity: 1 set
    Price:
    Packaging Details: wooden pallet or wooden case
    Delivery Time: 1month after received 30% deposit
    Payment Terms: 30% deposit+70%balance before shipment
    Supply Ability:
