|Place of Origin:||China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||wooden pallet or wooden case|
|Delivery Time:||1month after received 30% deposit|
|Payment Terms:||30% deposit+70%balance before shipment|
|Item:||Multi Function Box Making Machine||Warranty:||1 Year Guarantee|
|Machine Overall Dimension:||L4XW1.5XH2.2m||Power:||380V 50Hz|
|Noise Level:||≤80dB||Machine Type:||High Speed|
paper carton box making machine,
box manufacturing equipment
Narrow side box machine/wide side box machine/multi-fuction box making machine/shoe box forming machine/cosmetics box forming machine/ tea bag box packing machine/accessories box packing machine/corrugated box making machine/ ivory box machine/ white board box machine
Multi function box making machine
Double wall box
Quick change over size
Robotech gluer(4 guns)
Small machine size, save space
1 year guarantee
1. Intelligent spray glue system, Realize automatic spraying glue compensation function
2. Cardboard feeding automatically, achieves corrugate-feeding, edge wrapping, corner folding and forming in one process.
3. It adopts PLC programmable controller, photoelectric tracing system, air testing running system and touch-sensitive screen. The entire process is automatic.
4. Infrared security protective system, to ensure safe operation.
5. Automatic trouble diagnosing.
6. Fast changing mould adjusting device
(1) The forming unit adopts opening design, with compact and rational structure, stable and advanced performance, easy to operate.
(2) Intelligent spray glue system, realize automatic spraying glue compensation function.
(3) No need to stop machine while adding cardboard, cardboard feeding automatically,achieves corrugate-feeding, edge wrapping, corner folding and forming in one process.
(4) It adopts PLC programmable controller, Encoder and photoelectric switch air detection system touch screen man-machine interface operation. The entire process is automatic.
(5) Automatic trouble diagnosis.
(6) Infrared security protective system, to ensure safe operation
(7) Fast changing mould adjusting device

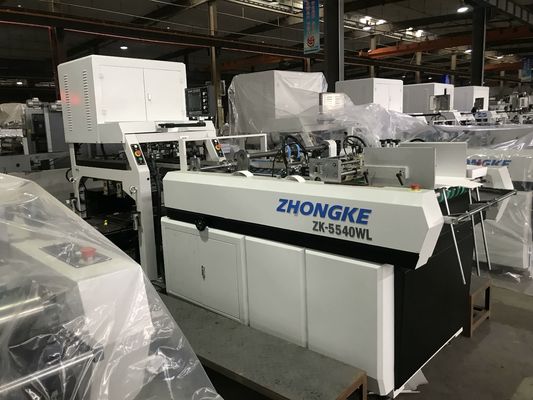

WLH5540 full automatic box machine is mainly applicable to such packing materials like B, E, F corrugated paper, 12-20PT ivory board and 250g-645g grey board, such as medium-grade paper box for shoes, food, toys, and daily necessities).
Paper wrap size
Cardoard blank thickness
|I Corrugared paper model||BEF|
|A min size||220mm||220mm||300mm|
|A max size||620mm||540mm||540mm||
II/III Ivory board
White board paper
|B min size||220mm||220mm||280mm||Power||380V 50Hz|
|B max size||740mm||630m||630mm||Noise level||≤80dB|
|L min size||120mm||120mm||120mm||Speed (Pcs/h)||2000-2700|
|L max size||550mm||340mm||340mm||Cardboard pile height||350mm|
|W min size||120mm||120mm||140mm||Load-bearing of cardboard laydown platform||20KG|
|W max size||415mm||255mm||255mm||Electrical power||10kw|
|H min size||25mm||25mm||35mm||Glue tank capacity(Litre)||8 L|
|H max size||130mm||70mm||60mm||Air supply (Litre/min)||80 L/min|
Turn in depth:R
|R min size||20mm||20mm||20mm||Net weight||1650kg|
|R max size||70mm||70mm||60mm|
|Broad-side edge width:S||S min size||6mm||Machine overall dimension||L4XW1.5XH2.2m|
|S max size||10mm|
The production speed depends on the material used on the box size,on the glue specifications and on the skill of the operators.
Technical specifications are subject to change without prior notice.
Exquisite process drives the future of rigid box.
Automatic Feeder Unit
Newly developed feeder enables high-speed separation and conveying of corrugated paper and paper board
High speed conveying, perfect glue applying and folding system
Automatic glue spraying system
High speed paper feeding and automatic precise glue spraying
Automatic forming unit
Its structure is simple, four angles are folded during high speed operation.
3. Product general information
|Place of Origin:||CHINA|
4. Product business terms
|Minimum Order Quantity:||1|
|Packaging Details:||WOODEN PALLETS/CASE|
|Delivery Time:||ONE MONTH|
|Payment Terms:||TT/LC AT SIGHT|
|Supply Ability:||50 SETS/YEAR|
Contact Person: Delly
