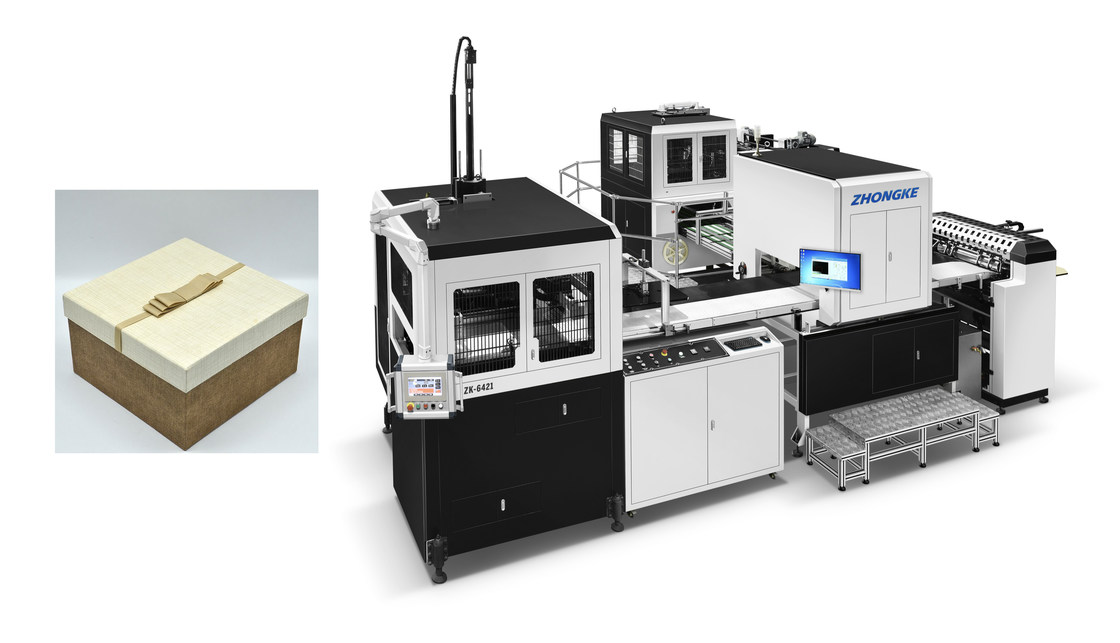

Compact Structure Paper Box Forming Machine For Rigid Box Easy To Operate

Compact Structure Paper Box Forming Machine For Rigid Box Easy To Operate

Paper Box Forming Machine Description:

With firm structure, high quality, low noise an high efficiency.

With paper feeding unit, adjusted unit, glue unit, forming unit, finished products collecting unit and also counting unit.

The feeder transmits the pre-printed and cut cardboard from the paper shelf to the convey chains and send it to the shaping mold, during the procedure, the volume of gluing can be measured while in progress without stopping. After being glued, the cardboard will be conveyed to be shaped and collected to be auto calculated as the preconcert quantity and auto mark without stopping production.

Paper Box Forming Machine configuration

1. Touchscreen HMI system of corner pasting device or board joining & box forming machine (optional)
2. Visually positioning and manipulator capture system (positioning error ±0.05mm)
3. 24-hour control of glue preheating;
4. Glue viscosity automatic control system (optional)
5. Completing multiple folding operations through servo driving box mold
6. Parameterized setting of functions

Paper Box Forming Machine Specifications

Note: parts need to be added if the box is 85mm long or if the fold in depth is 100mm.
